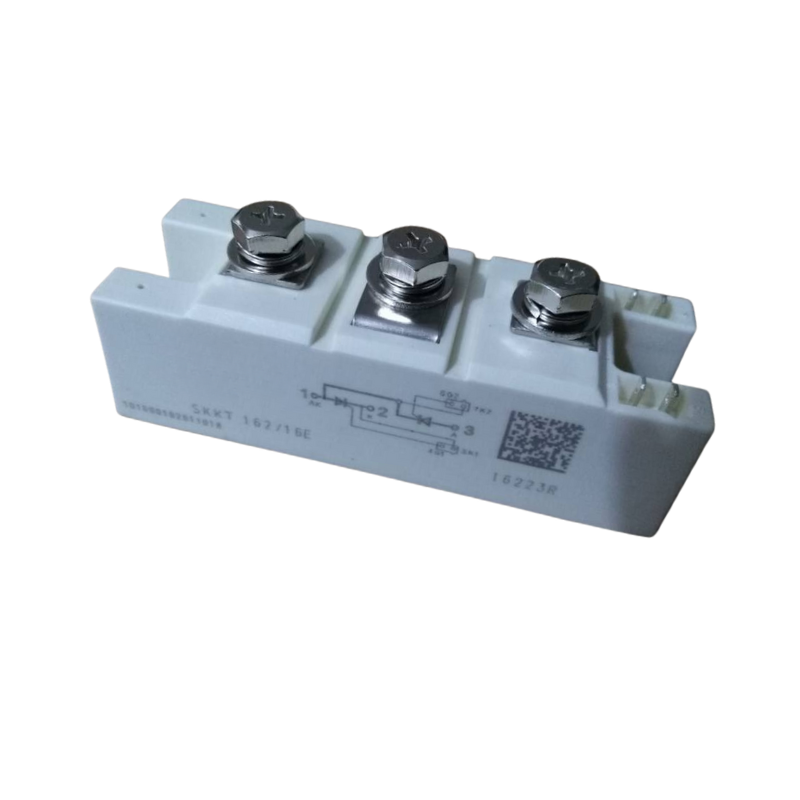

Semiduken SKKT 162/16E Three-Phase Thyristor / Diode Power Module

• Model: SKKT 162/16E

• Brand: Semiduken

• Package: SEMIPACK® 2

• Configuration: Dual thyristor + diode bridge

• Case Type: A21

• Average On-State Current (ITAV): 160 A (Tc = 83 °C)

• RMS Current (ITRMS): 250 A

• Surge Current (ITSM): 5400 A (Tj = 25°C), 5000 A (Tj = 125°C)

• VRRM (Repetitive Peak Reverse Voltage): 1600 V

• VRSM (Non-Repetitive Peak Reverse Voltage): 1700 V

• On-State Voltage (VT): Max. 1.8 V

• Gate Trigger Voltage (VGT): Max. 1.6 V

• Gate Trigger Current (IGT): Max. 150 mA

• Gate Hold Current (IH): Max. 200 mA

• Non-Trigger Voltage (VGD): Max. 0.25 V

• Non-Trigger Current (IGD): Max. 10 mA

• Critical dv/dt: 200 V/μs

• Critical di/dt: 100 A/μs

• Thermal Resistance Rth(j-c): 0.18 K/W (thyristor)

• Thermal Resistance Rth(c-h): 0.09 K/W (module)

• Insulation Voltage: 3600 V~ / 1 minute

• Operating Temperature: -40 to +125 °C

• Storage Temperature: -40 to +125 °C

• Mounting Torque to Heatsink: 5 ± 15% Nm

• Mounting Torque to Terminals: 5 ± 15% Nm

• Vibration Resistance: 5 × 9.81 m/s²

• Dimensions: 94 mm × 34 mm × 30 mm

• Weight: Approx. 165 g

• Mounting Hole: M6 bolts

• Cooling Method: External heatsink

• Internal Insulation: Ceramic baseplate

• Topology: 3-phase controlled rectifier

• Application: Motor drives, power supplies, oven control, HVAC, lighting

• Compliant Standards: UL Recognized (E 63 532), IEC compliant

• Lifecycle: Long-life industrial grade

• Category: High Power SCR Module

• Product Compatibility: Replacement for Semikron SKKT 162/16E

• Drawing Reference: Page 4 of datasheet
