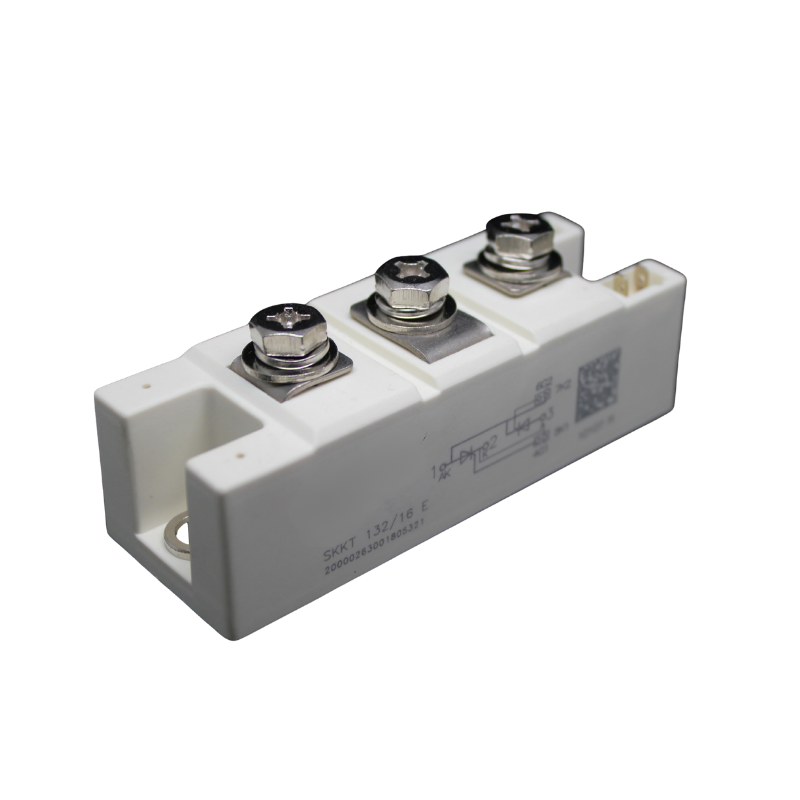

Semiduken SKKT 132/16E Three-Phase Thyristor / Diode Power Module

• Model: SKKT 132/16E

• Brand: Semiduken

• Package Type: SEMIPACK® 2

• Module Configuration: Dual Thyristor + Diode

• Case Type: A21

• Average On-State Current (ITAV): 130 A (Tc = 87 °C)

• RMS Current (ITRMS): 220 A

• Surge Current (ITSM): 4700 A (Tj = 25°C), 4000 A (Tj = 125°C)

• Repetitive Peak Reverse Voltage (VRRM): 1600 V

• Non-Repetitive Peak Reverse Voltage (VRSM): 1700 V

• Gate Trigger Voltage (VGT): Max. 1.8 V

• Gate Trigger Current (IGT): Max. 150 mA

• Holding Current (IH): Max. 200 mA

• Gate Non-Trigger Voltage (VGD): Max. 0.25 V

• Gate Non-Trigger Current (IGD): Max. 10 mA

• On-State Voltage Drop (VT): Max. 1.8 V @ IT = 500 A

• Thermal Resistance Rth(j-c): 0.19 K/W

• Thermal Resistance Rth(c-h): 0.095 K/W

• Critical dv/dt: 200 V/μs

• Critical di/dt: 100 A/μs

• Insulation Voltage: 3600 V~ / 1 min

• Operating Temperature Range: -40 to +125 °C

• Storage Temperature: -40 to +125 °C

• Mounting Torque (to Heatsink): 5 ± 15% Nm

• Mounting Torque (to Terminals): 5 ± 15% Nm

• Vibration Resistance: 5 × 9.81 m/s²

• Weight: 165 g

• Dimensions: 94 × 34 × 30 mm

• Mounting Hole: M6 bolts

• Cooling: External heatsink required

• Material: Ceramic Insulated Baseplate

• Electrical Isolation: Integrated

• Topology: Phase-Controlled Bridge

• Applications: AC/DC motor control, soft starters, ovens, furnaces

• Compliant Standards: IEC & UL Recognized (E 63 532)

• Design Lifetime: Long-life industrial grade

• Product Category: High Power Thyristor Rectifier Module

• Replacement Option: Equivalent to Semikron SKKT 132/16E

• Case Drawing Reference: Page 4 of Datasheet
